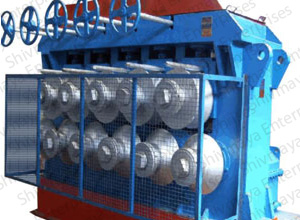

The Section Straightening Machines are used to Straighten Rolled Steel Sections like Angle, Channels, Rounds, Beams etc. Straightening Rolls are made according to section from Adamite material. The company has supplied these machines to various reputed concern. Straightening machine made up of steel fabricated M. S. plates of amply thickness with outer lining of same plates to strengthen the body will carry gears of En –19 steel to run the rolls. The machine will contain sufficient rolls of Adamite containing anti friction roller bearings.
The straightening machine fitted in built reduction gear box on frame of sufficient ratio will be of contain helical steel gears cut of imported hobbing machine shall be provided with it for accurate running of machine.
| Model | SSM-13 | SSM-16 | SSM-20 | SSM-25 | SSM-30 | SSM-35 | SSM-40 | SSM-45 |
|---|---|---|---|---|---|---|---|---|
| Capacity (in mm) for Sections (min / max) | ||||||||
| ‘L’ and ‘T’: | 12x12x3 / 35x35x5 | 15x15x3 / 40x40x5 | 20x20x3 / 50x50x6 | 20x20x4 / 75x75x6 | 32x32x5 / 100x100x8 | 35x35x5 / 110x110x10 | 40x40x5 / 130x130x12 | 50x50x5 / 150x150x12 |
| ‘C’ and ‘I’: | -- | All Window Sec. | All doors & Window sec. | 30x12 / 75x40 | 50x30 / 100x50 | 60x30 / 150x75 | 65x35 / 200x75 | 75x40 / 250x80 |
| Flats | 10x3 / 40x6 | 20x3 / 40x10 | 20x4 / 50x10 | 20x5 / 65x15 | 32x6 / 70x20 | 30x8 / 75x25 | 30x10 / 100x15 | 50x10 / 150 x 20 |
| Solid Round: | 6 / 25 | 10 / 30 | 15 / 35 | 12 / 45 | 16 / 50 | 20 / 60 | 25 / 70 | 25 / 80 |
| Hollow Round: | 6 / 45 | 10 / 50 | 15 / 60 | 12 / 100 | 16 / 125 | 20 / 150 | 25 / 175 | 25 / 200 |
| Square and hexagonal: | 6 / 20 | 10 / 25 | 10 / 32 | 12 / 40 | 16 / 50 | >20 / 55 | 25 / 65 | 25 / 90 |
| Number of rolls (mm): | 10 / 8 | 8 | 8 | 10 / 8 | 8 | 8 | 8 | 8 |
| Roll Centre (mm): | 130 | 160 | 200 | 250 | 300 | 350 | 400 | 450 |
| Roll Size (mm): | >125 | 155 | 195 | 245 | 295 | 345 | 390 | 440 |
| Speed (m / min.) | 50 | 45 | 35 | 30 | 25 | 20 | 20 | >15 |
| Motor (HP): | 7.5 | 10 | 15 | 20 | 30 | 40 | 60 | 75 |
| Shaft Extension (Dia./ Length): | 40 / 100 | 50 / 110 | 75 / 140 | 90 / 175 | 100 / 200 | 110 / 230 | 120 / 300 | 175 / 350 |
| Net / Gross Weight (Kgs): | 1200 / 1500 | 3100 / 3500 | 3500 / 4000 | 5000 / 5500 | 6250 / 6850 | 8500 / 9200 | 13000 / 14000 | 16000 / 17000 |
