E.O.T. Cranes use in Steel plants, Induction Furnaces, Paper mills, Cold Rolling mills, Arc Furnace, Pipe mills, Power plants, Hydro Power plant, Heavy Engineering industries, Container Handling, Dyeing Plants/ Wollen mills, Chemical & Pharmaceutical units,, Petro Chemical industry.
These cranes can be equipped for cabin, floor pendant control, joy stick control and radio control. The cabin can be attached to the bridge or trolley as in case of grabbing cranes.

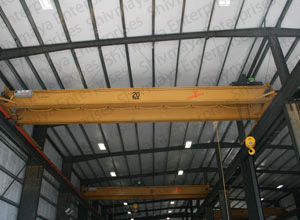

The double girder cranes find extensive use in Induction Furnace, Arc Furnace, Cold Rolling Mills, Paper Mills, Pipe Mills and Heavy Engineering Industry. These cranes have the advantage of low overall height as the hook can be raised between the two crane girders.
These cranes can be equipped for cabin, floor pendant control, joy stick control and radio control. The cabin can be attached to the bridge or trolley as in case of grabbing cranes.
| Capacity | Span | Span (in mtrs.) | Head Room clearance HRC (in mm) | End Clearance ELS/ERS(in mm) | Hook Approach HALS (in mm) | Hook Approach HARS(in mm) | Wheel Load of Crane (in Tones) | Total Wt. of crane (in Tones) |
|---|---|---|---|---|---|---|---|---|
| 5.0 5.0 5.0 | 10 15 20 | 3800 4000 4200 | 1600 1600 1700 | 250 250 250 | 900 900 900 | 800 800 800 | 5.8 6.7 7.3 | 10.2 12.5 15.5 |
| 7.5 7.5 7.5 | 10 15 20 | 3800 4000 4200 | 1600 1700 1800 | 250 250 250 | 1800950 950 950 | 850 850 850 | 8.4 9.4 10.0 | 13.0 16.0 18.5 |
| 10.0 10.0 10.0 | 10 15 20 | 3800 4000 4200 | 1800 1800 1900 | 250 250 275 | 1000 1000 1000 | 900 900 900 | 9.5 10.5 11.5 | 13.5 16.5 19.5 |
| 15.0 15.0 15.0 | 10 15 20 | 3800 4000 4400 | 2000 2200 2300 | 275 275 275 | 1000 1000 1000 | 900 900 900 | 13.5 15.7 16.8 | 18.5 21.5 25.5 |
| 20.0 20.0 | 15 20 | 4200 4400 | 2400 2500 | 300 300 | 1100 1100 | 900 900 | 18.4 19.3 | 24.0 27.5 |
| 25.0 25.0 | 15 20 | 4400 4600 | 2600 2800 | 300 300 | 1150 1150 | 1000 1000 | 21.6 22.8 | 26.0 30.0 |
| 30.0 30.0 | 15 20 | 4600 4800 | 2800 3000 | 300 300 | 1200 1200 | 1000 1000 | 26.0 28.0 | 30.0 36.5 |
| 40.0 40.0 | 15 20 | 4800 5000 | 3000 3200 | 325 325 | 1300 1300 | 1050 1050 | 31.8 33.4 | 35.0 40.0 |
